LED Vapor Proof Surface Mount - 58W - 4000K - 100-277V : 62/1063

No Image
Available

Image may not reflect selected features

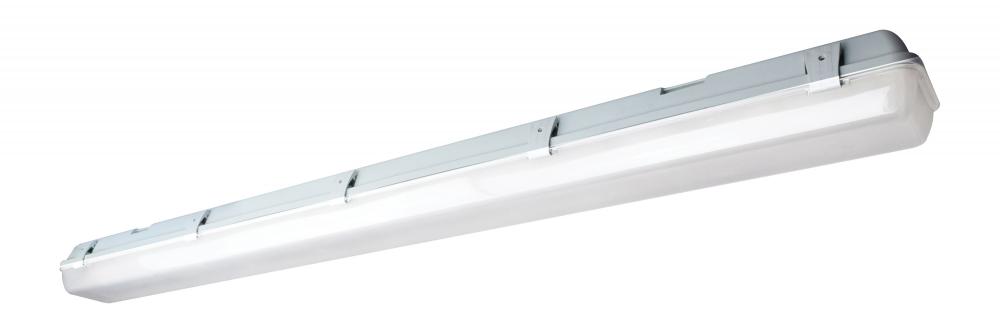

LED Vapor Proof Surface Mount - 58W - 4000K - 100-277V (62/1063) by Nuvo

LED Vapor Proof Surface Mount; 58W; 4000K; White/Gray Finish; 100-277V

Product Specification

Item #

62/1063

Dimensions

Height: 2.94"

Width: 4.53"

Additional product details

Vendor Item #

62/1063

Internal #

A0043

Category

Linear

Sub Category

Vapor Proof

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Cool White

Dimmable

Yes-Dimmable

Each Height

5.71

Each Length

52.36

Each Width

7.09

Length

Lumens

6400L

Tariff Code

9405.42.6000

Warranty

5 Year Limited - Fixtures

Amps

0.580-0.209A

ANSI Base

Integrated

BAA Compliant

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Direct Wired

Country Of Origin

China

CRI

80+

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

Each Cube

1.2267

Each Quantity

Efficacy

110.34 LPW

FCC Compliant

Yes

Finish Family

White

Incandescent Equivalent

325W

IP Rating

IP65

JA8 Compliant

Material

Plastic

Mounting Procedure

Ceiling

Operating Temp

-30C (-22F) to +55C (+131F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.91

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Sensor Detection Range

16m x 15m Maximum

Sensor Field of View

30 deg to 150 deg

Sensor Mounting Height

19.69 Feet (6m) Maximum

Sensor Operating Temperature

-20C (-4F) to 60C (+140F)

Sensor Operation

Intergrated Microwave Sensor

Sensor Time Delay

5s;30s;1min;5min;10min;20min;30min

Short Description

58W VAPOR PROOF SURFACE MOUNT

Temperature (CCT)

4000K

Title 20 Compliant

Exempt

Title 24 Compliant

Wattage Selectable

Weight Lb.

5.93

Manufactured By

Nuvo

Finish
